Reliable Solution for Hydrogen Compression

Our diaphragm compressors are engineered to meet the demanding needs of hydrogen applications.

From hydrogen refueling stations to cylinder filling, storage & transportation, and fuel cell supply, we provide safe, reliable, and oil-free compression solutions trusted worldwide. Our machines deliver stable performance under ultra-high pressures, ensuring hydrogen purity and safety at every stage.

Handle pressures up to 900 bar

Oil-free compression for ultra-pure hydrogen

Long service life with low maintenance

CE / ISO / ASME certified for global compliance

UncompromisingTechnical Excellence

Safety stems from the mastery of limits. We seamlessly integrate physical isolation with real-time digital monitoring to create a comprehensive, full-chain security protection system.With our exceptional multi-level redundancy design, we ensure that every piece of equipment remains rock-solid even in extreme environments—achieving controlled, reliable, and zero-risk operation

First physical sensing linePrimary diaphragm rupture alarm protectionReal-time monitoring of the primary diaphragm via high-sensitivity sensors. Upon structural failure, the system captures signals in milliseconds to trigger alarms and interlock shutdowns, ensuring early fault detection.

Ultimate failure redundancySecondary diaphragm rupture protectionMonitors primary diaphragm via high-sensitivity sensors. Structural damage triggers millisecond-level alarms and interlock shutdowns, ensuring early fault identification.

01Physical redundancyDual diaphragm safety barrier

02Power monitoring

Lubrication system stability protection

Power system "blood" monitoringLow lubrication oil pressure protectionReal-time tracking of drivetrain lubrication status. When oil pressure drops below safety thresholds, the system cuts power to prevent bearing wear or seizure caused by lubrication failure, safeguarding equipment mechanical life.

Gas source stability interventionLow intake pressure protectionIntelligently detects upstream fluctuations. Active intervention at low intake pressure prevents instability, vibration, or damage from vacuum or starvation, ensuring continuous, balanced suction.

System-level explosion-proof safety controlSecondary stage discharge pressure protection

High-pressure safety line for final discharge. When pressure hits the limit, secondary protection triggers via electronic monitoring and active intervention to prevent systemic overpressure and safeguard pipeline assets.

03Operational DynamicsComprehensive Intake & Discharge Logic Control

Defining SafetyThrough Extreme Validation

Safety is not a promise; it is a proven result. Before delivery, every unit must undergo tens of thousands of fatigue cycle tests and simulated operational drills that push beyond design limits.

Maintaining 100% reliability in extreme environments is our ultimate commitment to your asset security and production continuity.

Diaphragm Compressor Testing

GL1 Compressor Testing

Defining Safety ThroughExtreme Validation

No matter where you are located, MINNUO's full range of products supports flexible, containerized skid-mounted deployment. Complemented by our global technical support and rapid response network, we empower your energy transition through the excellence of Intelligent Manufacturing in China.

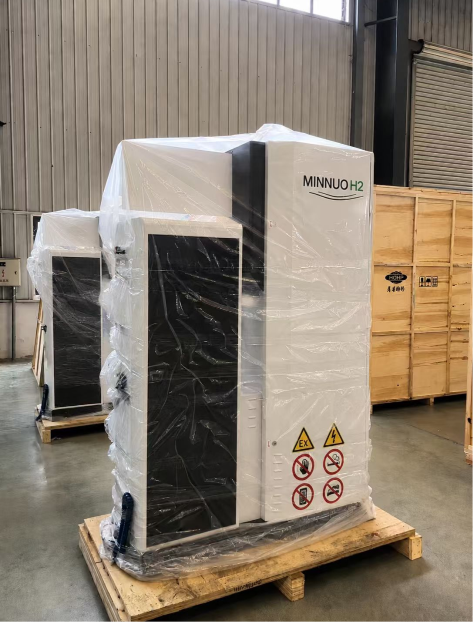

Hermetic SealingUtilizes VCI technology and vacuum sealing as "invisible armor" to block salt spray, moisture, and corrosion. This ensures core precision components maintain factory-grade cleanliness and luster during long-term maritime transit or storage.

Multi-Point AnchoringMechanically modeled by center of gravity, high-strength steel bases and flexible straps provide multi-point support. This logic offsets transit shocks and eliminates relative displacement within the container.

Global DeliveryPackaging is fully compatible with 20GP/40HQ standard containers, optimizing loading efficiency and reducing handling risks. We offer traceable, standardized delivery for projects worldwide.

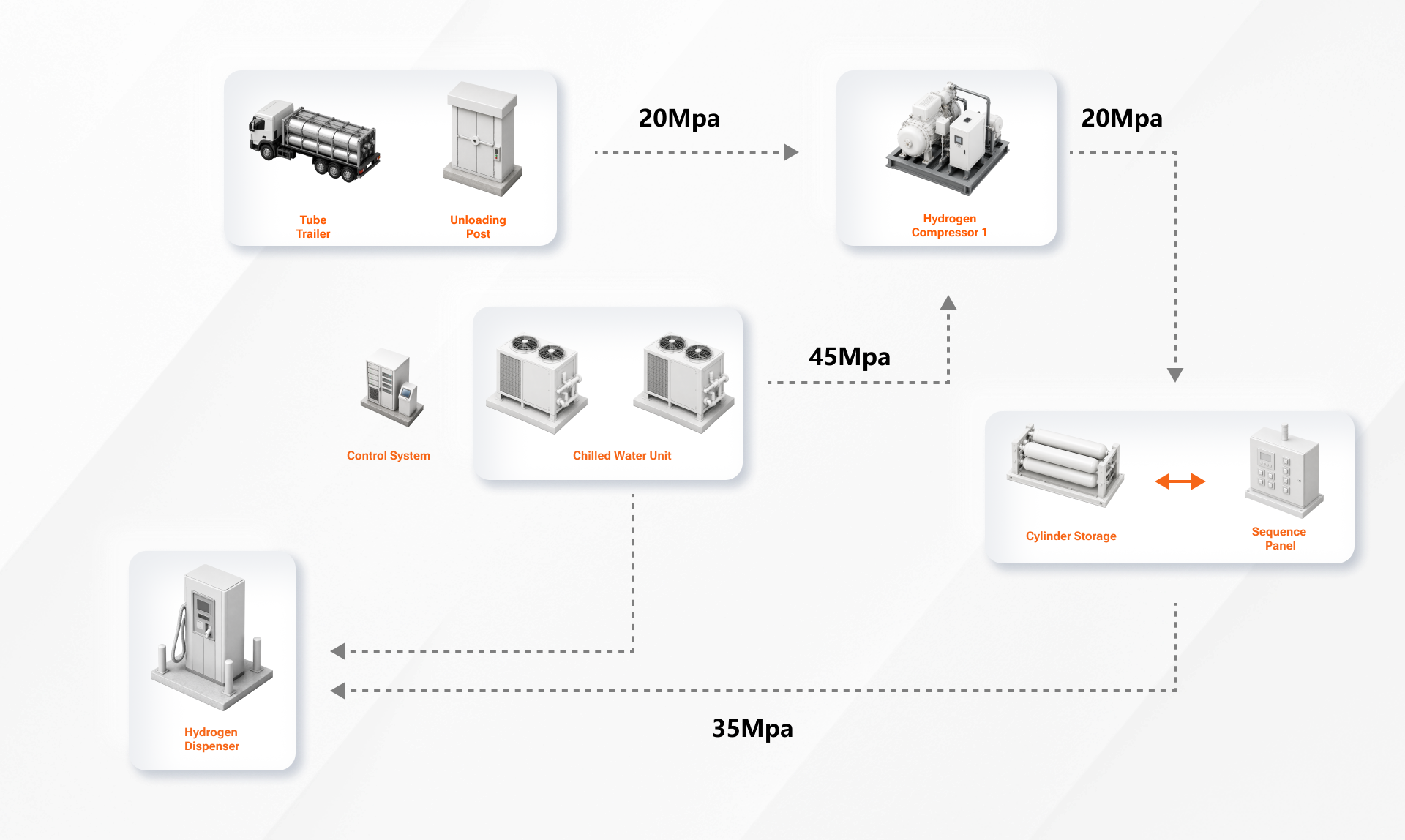

Hydrogen Station Flow Diagram

Seamlessly integrating pressure compensation, cooling, and smart dispatching to ensure a high-efficiency, low-consumption standardized hydrogen refueling process.

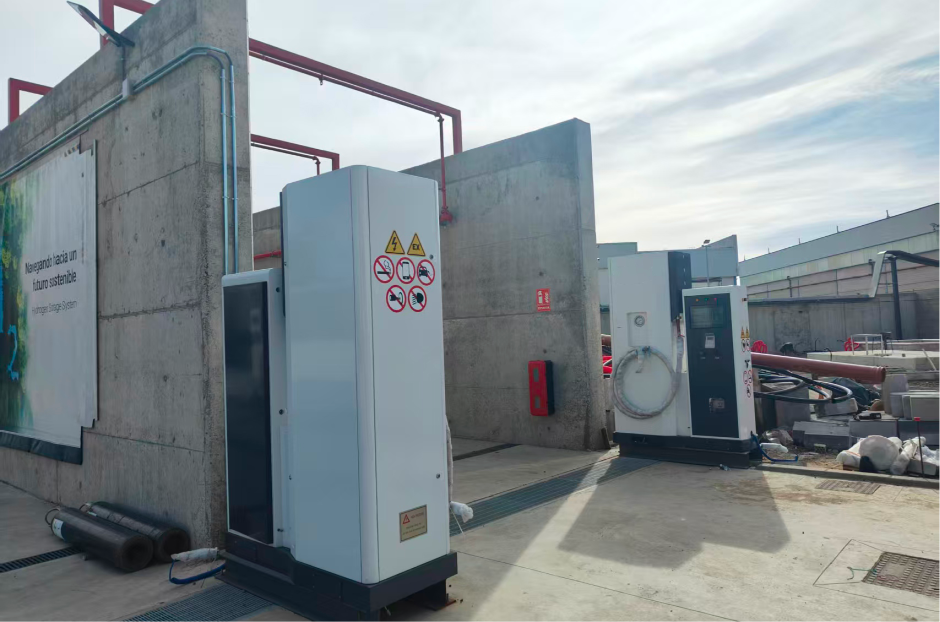

Hydrogen Dispenser: High-Pressure Hydrogen Refuelling

Robust industrial protection meets high-precision metering and advanced explosion-proof safety. More than just a flagship terminal, it is the most dependable refueling partner for your hydrogen infrastructure.

Extreme Pressure Resistance

Challenging physical extremes. With high-strength alloys and ultra-thick wall architecture, it handles 70MPa+ ultra-high pressures with ease, guaranteeing rock-steady performance under extreme loading.

Precision Sealing

Zero Escape. Zero Tolerance. A multi-level composite seal designed for ultra-fine molecules. It ensures a constant airtight seal through frequent pressure cycles, protecting every ounce of green energy.

Anti-Hydrogen Embrittlement

Material-Level Safety Assurance. By strictly selecting specialized stainless steels and employing solution heat treatment processes, we block hydrogen atom permeation at the microscopic level, eliminating the risk of metal embrittlement and significantly extending the equipment's full life cycle.

Hydrogen Refuelling Station(HRS) Solutions

Backed by decades of gas engineering expertise, we deliver full-spectrum services from consultancy to core equipment. We are committed to providing a strong technical foundation for the global shift toward hydrogen and a carbon-free future.

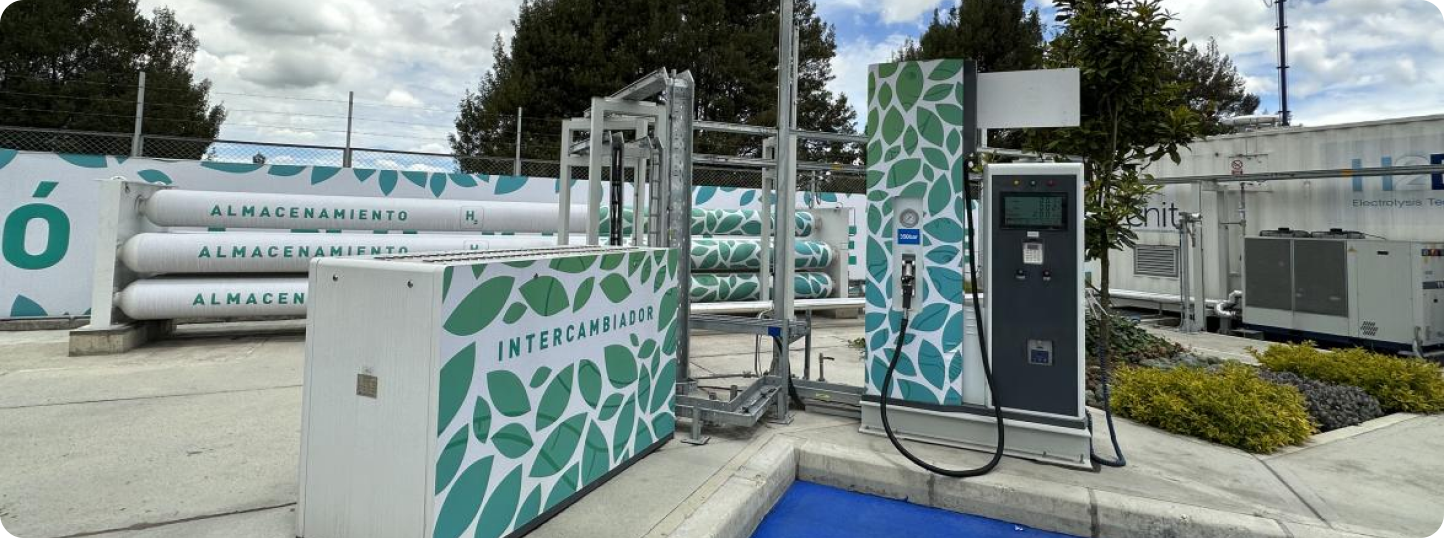

On the map of Spain's green transition, this Minnuo-enabled hydrogen station stands out as a high-performer, capable of refueling 4.8 tons daily to power 800 fuel cell vehicles. With word-leading scale and expertise, it serves as a premier national hydrogen demonstration landmark for both Spain and the broader European region.

Full-Process Safety RedundancyIntegrated with leak detection, auto-sprinkling, pressure relief, and static grounding. This multi-layered safety loop ensures hydrogen remains under total control during compression, storage, and refueling.

Deep Cooling TechnologyIntegrated high-efficiency pre-cooling prevents gas overheating during refueling. By delivering hydrogen at a stable low temperature, the system optimizes filling speed while ensuring the absolute safety of the on-board storage tanks.

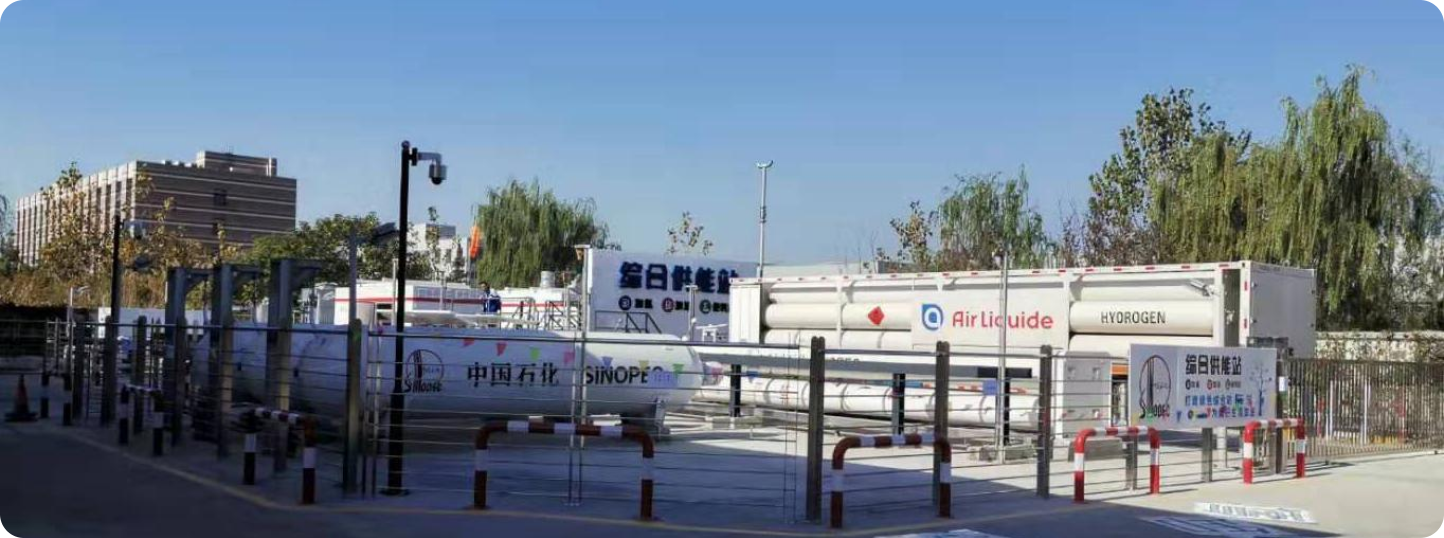

As North China's leading hydrogen refueling hub, the Tianjin Xinheng Energy project serves as a core nexus in Tianjin Port Free Trade Zone's hydrogen energy industrial layout, playing a key role in regional hydrogen supply security. The project not only successfully provided stable, high-purity hydrogen backup for fuel cell vehicles during the 2022 Beijing Winter Olympics, but also became Tianjin's first commercially operational hydrogen refueling station with daily hydrogen supply capacity reaching 20 tons. Its smooth commissioning marks the entry of North China's hydrogen infrastructure into a new phase of scaled commercialization.

Modular & Agile Delivery ArchitectureBased on a "LEGO-style" design philosophy, core units—including refrigeration, fueling, and control systems—are integrated within standard explosion-proof enclosures. This solution supports rapid site expansion and relocation, reducing onsite construction workload by over 60% and significantly shortening the overall project lead time.

High-Purity Compression ProcessUtilizing hydraulic-driven diaphragm compressors, this process achieves physical isolation between the hydrogen and the driving medium. By eliminating lubricant contamination at the source, it ensures that the dispensed hydrogen purity remains consistently stable at 99.97% or higher.

Deeply Rooted in Precision Manufacturing:
Industrial-Grade Hydrogen Compression Solutions for Samsung

Project Background

In Samsung's advanced production lines, where minor pressure shifts or contamination can ruin expensive wafers, our equipment was selected for the supply chain based on our "Five Core Safety Assurance Systems."

Core Value

Extreme StabilityMeets the rigorous requirements of 24/7 continuous operation in the semiconductor industry, with an MTBF (Mean Time Between Failures) that far exceeds industry standards.

Multi-Level Safety StrategyThe "Secondary Diaphragm Rupture Protection" offers vital redundancy for Samsung, eliminating any risk of media leakage into the cleanroom.

Why ChooseMinnuo Diaphragm Compressor?

We will provide a detailed and complete maintenance plan for each machine.

Our compressor has comprehensive protection and alarm functions to ensure on-site safety.

Our diaphragm compressor can ensure that the gas and hydraulic oil are completely out of contact.

We will conduct a series of tests on the compressor before it leaves the factory, including: explosion-proof test, raw material test, water pressure test, no-load and full-load test, etc.
